產品介紹

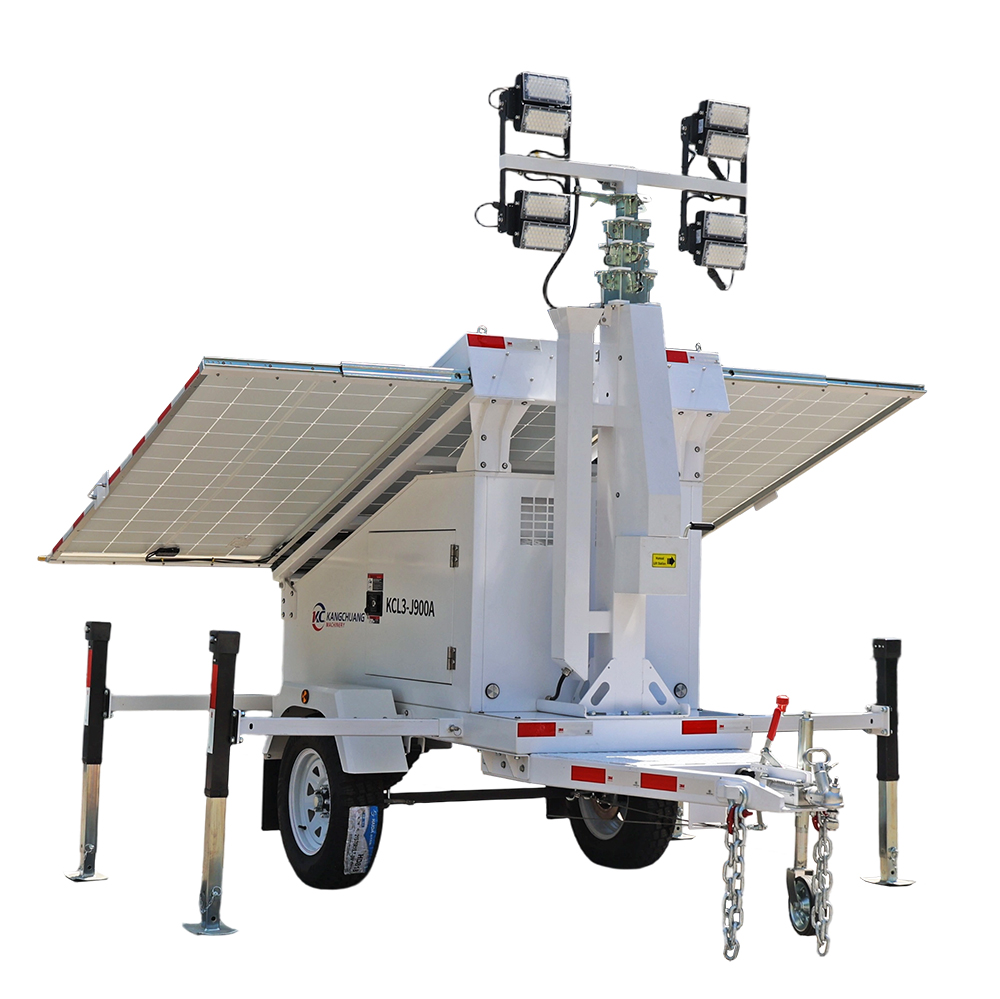

| 手動太陽能燈塔Manual solar lighthouse |
| 型號(MODEL)KCL-900A |
| 樣機標準配置參數(Standards Technical DATA) |
| 1.機械桿離地高度: 8米1. Mechanical rod height: 8 meters |
| 2.機械桿類型：手動絞盤2:Mechanical Rod type:Manual winch |
| 3.太陽能板類型：單晶硅3. Solar panel type: Monocrystalline silicon |
| 4.太陽能板功率：475Wx3件 4. Solar panel capacity: 475Wx3panels |
| 5.膠體電池：150AHx6只5. Battery: 150Ah x 6units |
| 6.太陽能控制器及MT53顯示器 6. Solar controller & MT53 display |
| 7.燈類型：LED7. Lighting type: LED |
| 8.燈功率：150Wx4只8. Lighting capacity: 150Wx4 units |
| 9.逆變器功率：3KW9. Inverter capacity: 3kW |
| 10.輪胎尺寸/類型：15寸/AT10. Tire specifications: 15-inch/AT |
| 11.剎車類型；撞剎11. Brake type: Impact brake |
| 12.充電放電時長：10h/16h 12. Charging/discharging duration: 10h/16h |
| 13.工作溫度：0-60℃13. Operating temperature: 0-60°℃ |
| 14.外形尺寸：長寬*高14. External dimensions: length 3500mm* width 1575mm* height 2750mm |
| 可增選配置(Optional Parts) |
| 1.可更換電動絞盤升降桿 1. Replaceable electric winch lift rod |
| 2.可更換液壓升降桿 2. Replaceable hydraulic lift rod |
| 3.可更換太陽能板型號 3:Replaceable solar panel models |
| 4.可加裝3kg滅火器 4. Optional 3kg fire extinguisher |
| 5.可加裝充電器 5. Optional charger |
| 6.可加裝LED燈 6.Optional LED lights |
| 7.可更換逆變器輸出電壓AC110V-240V 7. Replaceable inverter output voltage AC110V-240V |
| 8.可加裝云臺0-355°旋轉及垂直旋轉0-90° 8. Optional PTZ mount (0-355° rotation) and vertical rotation (0-90° tilt) |
