產品介紹

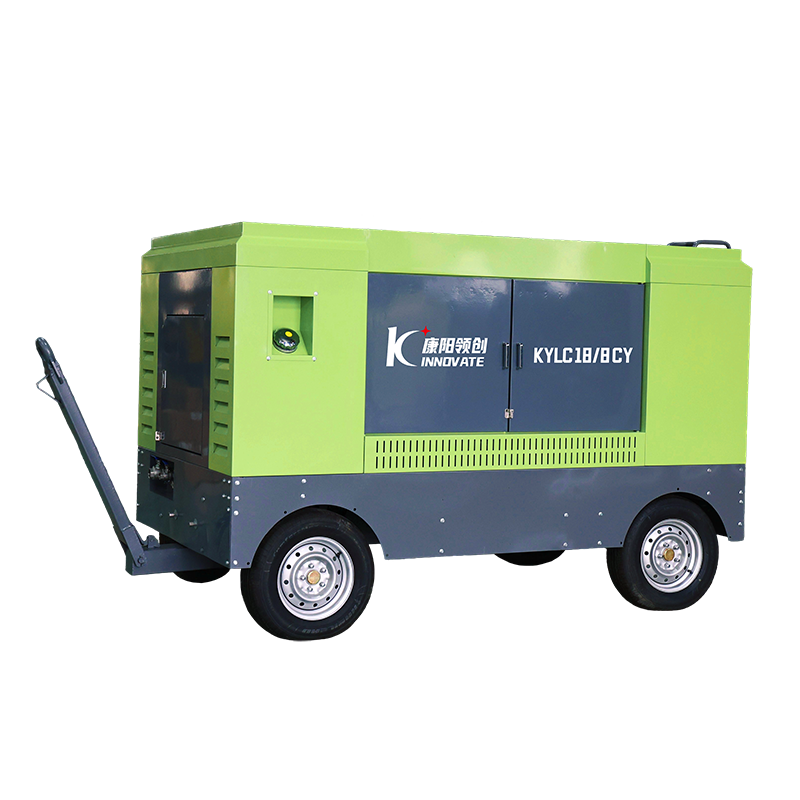

| 型號(Model) | KYLC18-18CY |
| 壓縮機(Screw air compressor) | |
| 型式(Layout) | 螺桿式單級壓縮油冷式((Screw type Single -Stage compression Oil cooling type) |
| 排氣量m3/min（Free air Deliver） | 18 |
| 排氣壓力bar（Discharge Pressure） | 18 |
| 驅動方式（Drive Way） | 柴油機驅動(Diesel Driven) |
| 油氣灌容量L(Oil and Gas Tank Capacity ) | 100 |
| 潤滑油油量L（Lubriucating Oil Capacity） | 48 |
| 空濾(Air Fliter) | 弗列加(FleetGuard) |
| 機頭（Air Compressor Head） | 鮑斯(Baosi Brand) |
| 柴油機（Diesel Engine） | |
| 制造商(Manufacturer) | 康明斯CUMMINS |
| 型號（Model) | QSB5.9-C220-31 |
| 額定轉速/滿載/空載rpm（Rated Speed/ Full Load/Idling） | 2200/1950/1450 |
| 額定功率KW（Rated Power） | 157 |
| 缸數/缸徑/行程(Cylinders/Cylinder Dia./Piston Stroke) | 6×102×120 |
| 排量L(Ouptput Volume) | 5.9 |
| 冷卻器液容量L(Coolant Capacity ) | 20 |
| 機油容量L(Engine Oil Capacity) | 17 |
| 燃油箱容量L(Fuel Tank Capacity) | 210 |
| 空濾(Air Fliter) | 弗列加(FleetGuard) |
| 油濾( Oil Fliter) | WD13145 |
| 電瓶(Battery) | 6QW-165MF |
| 聯軸器(Coupling) | 高彈(HigH Elastic) |
| 行走速度Km/h(Walking Speed) | 0-20 |
| 尺寸.重量(Size and Weight) | |
| 長mm(length) | 3282(2780不含牽引)(2780 not included traction) |
| 寬mm(Width) | 1605 |
| 高mm(Height) | 2252 |
| 靜重Kg(N.W) | 2500 |
| 出口排氣閥(Exhaust Valve) | G1"x1&G11/2"x1 |
| 報價(OFFER) | |
| 40HC/HQ高柜建議裝柜臺數(Recommend QTY) | 4 |
| 選配配置1(Optional parts) | 無 |
| 選配配置2(Optional parts) | 無 |
| 選配配置3(Optional parts) | 頂置沙漠空濾(Top Mounted Desert Air Fliter) |
| 選配配置4(Optional parts) | 柴油機水循環加熱系統(Diesel Engine Hydronics System) |
| 選配配置(5Optional parts) | 遠程遙控(Romote Control) |
